Wood Stick Plant


Ice Cream Wood Stick|Tongue Depressor Product Line

  • Material: wood
  • Capacity: 320,000 - 690,000pcs/8hours,can be customized
  • Loading Port: Qingdao port

Description:

Multi-functional wood ice cream stick processing line is for processing ice cream stick,tongue depressor,coffee stirrer and matchstick by changing moulds in carve cutting machine.

Thank you for visiting our site! Please feel free to submit this form with any questions or comments. We will answer your message within 24 hours.
wood320,000 - 690,000pcs/8hours,can be customizedQingdao port
 Features
ice cream stick machine
Wood Ice Cream Stick Product Line is multifunctional for processing ice cream stick,tongue depressor,coffee stirrer and matchstick by changing moulds in carve cutting machine.
1.Cooking Machine:Frist,you should cook the log up to 80-100℃ for 3-4 hours
2.Single Segment Rotary Cutting Machine: Cut the log into thin board then put in to Carve Cutting Machine

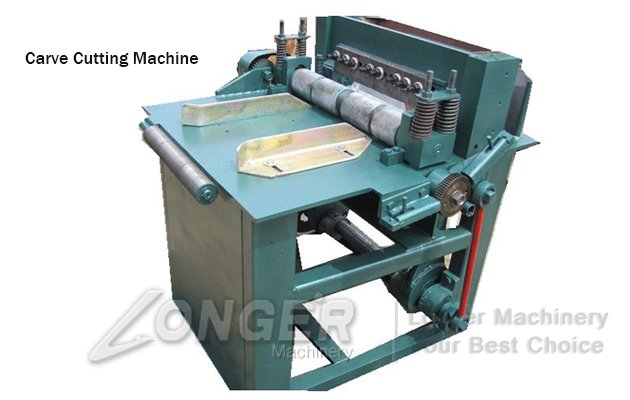

3.Carve Cutting Machine:Put the board which processed by Rotary Cutting Machine into this machine,then you can get the finished product with different sizes,by changing the moulds in the machine
4.For the Chamfering Machine:It is used for embellishing the finished product line.
5.For the Selecting Machine:It can select the finished product which from Carve Cutting Machine,if the finished product is curving,thin,and also remove the dust in the products.
6.For the Bundling Machine:It can bunld the finished product to a bould of 50 pcs
7.For the Knife Sharpening Machine:It is used for sharpening the knifes in the machine.ice cream sticks


Capacity of machines of Wood Ice Cream Stick Line:
1.Wood Log Cooking Machine:we need to suggest you according to the capacity of below machines
2.Single segment rotary cutting machine:6,900,000/8h
3.Carve cutting machine:2300,000/8h
4.Chamfering Machine:320,000/8h
5.Selecting Machine:320,000/8h
6.Bundling Machine:320,000/8h
 Technical Data
Name Power(kw) Weight(kg) Outside dimension(m)
1.Rotary Cutting machine 10.87 2000 3.0*2.0*1.5
2.Carve Cutting machine 2.2 400 1.2*1.2*1.3
3.Rotary Drying Machine 11 3500 4.5*2.2*2.2
4.Chamfering Machine 1.5 300 1.2*0.9*1.0
5.Selecting Machine 0.37 176 3.6*0.8*1.2
6.Branding Machine(Double Sides) 0.37 230 3.03*0.7*1.1
7.Bundling Machine 0.55 260 2.3*0.7*1.6
8.Knife Grinding Machine
9.Blade(Carve Cutting Machine)
