Cones Machine

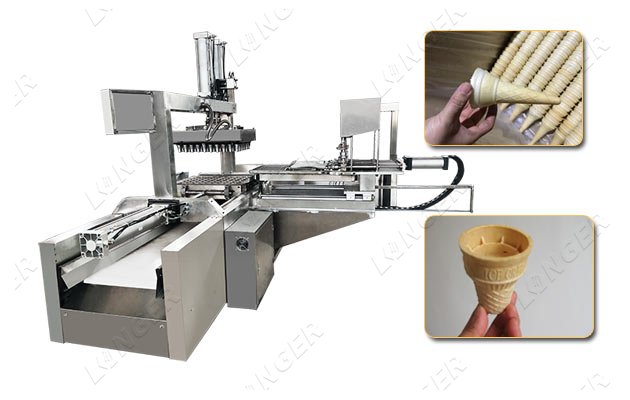

Industrial Ice Cream Wafer Cone Making Machine Equipment For Sale
- Material:
- Capacity: 1200-4500pcs/h
- WhatsApp: 0086-18538123076
Description:
LONGER Machinery offers different models of ice cream wafer cone maknig machines which can be used to make different kinds of ice wafer cones with different shapes and sizes. The capacity range from 1200pcs/h to 6000pcs/h
SEND EMAIL
GET PRICE
Features
LONGER Machinery offers different models of ice cream wafer cone maknig machines which can be used to make different kinds of ice wafer cones with different shapes and sizes. The capacity range from 1200pcs/h to 4500pcs/h. LONGER Machinery also offer Waffle Cone Making Machine
Detailed specifications of automatic wafer cones machine:
⭐ Model: LONGER Machinery offers 3 models of automatic wafer cone making machines with capacity ranges 1200pcs/h to 4500pcs/h
⭐ Heating type：Electric heating
⭐ Baking time: The light color of the egg cone indicates that it is not cooked. The heating temperature needs to be increased. There is a temperature difference between the upper and lower molds. Because the upper mold temperature is higher, the heat can be transferred to the baking sheet, and the lower mold directly heats the mold.
⭐ Filling time: Adjust the injection time by looking at the amount of waste. The shorter the injection time, the less the injection and the less waste
⭐ Installation: Electric control box power supply wiring AC 380V 50hz three-phase
Detailed specifications of automatic wafer cones machine:
⭐ Model: LONGER Machinery offers 3 models of automatic wafer cone making machines with capacity ranges 1200pcs/h to 4500pcs/h
⭐ Heating type：Electric heating
⭐ Baking time: The light color of the egg cone indicates that it is not cooked. The heating temperature needs to be increased. There is a temperature difference between the upper and lower molds. Because the upper mold temperature is higher, the heat can be transferred to the baking sheet, and the lower mold directly heats the mold.
⭐ Filling time: Adjust the injection time by looking at the amount of waste. The shorter the injection time, the less the injection and the less waste
⭐ Installation: Electric control box power supply wiring AC 380V 50hz three-phase
Automatic ice cream wafer cone making machine is equipped with Touch-screen and programmed by Siemens, which is easy to operate which with automatic temperature control, lighting to finish the baking process. With PLC Software, ice cream wafer cones machine is of LPG to generate the heat energy to make various shapes of biscuit cones.
Video:
Instructions when receiving the automatic wafer cone machine:
1 The machine must be used with an air compressor (7.5kw screw)
2 After starting up, use the jog page to control each action, check the line, and the machine is normal
3 Coat the upper and lower molds with animal oil, animal oil must be used
4 Formula confirmation
5 When it is not working, the mold must be closed when shutting down, and the upper mold must be put down
Technical Data
| Model | Capacity(PCS/H) | Power(KW) | Dimension(MM) | Weight(KG) |
| LGDW-40F | 1200-2600 | 15 | 2400*1500*2050 | 1300 |
| LGDW-60F | 1500-2800 | 24 | 2400*2700*2600 | 1800 |
| LGDW-120F | 2500-4500 | 48 | 4800*2700*2600 | 4300 |
