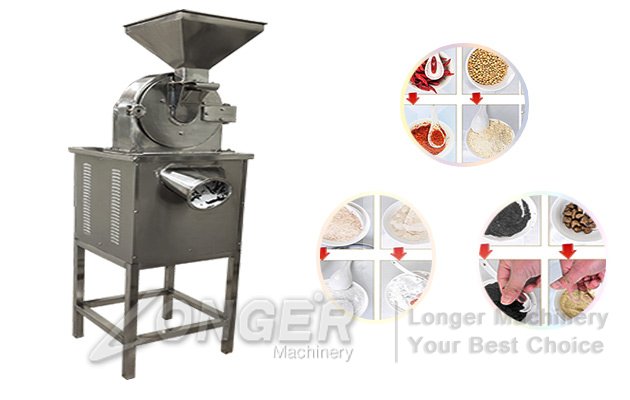

Automatic Universal Powder Grinding Machine|Universal Crusher Machine

  • Material: chili,spice,ginger,salt,sugar,etc
  • Capacity: 5-800kg,can be customized
  • Loading Port: Qingdao Port

Description:

This machine is widely used in the crushing of materials in the pharmaceutical,food,chemical and other industries.

Thank you for visiting our site! Please feel free to submit this form with any questions or comments. We will answer your message within 24 hours.
chili,spice,ginger,salt,sugar,etc5-800kg,can be customizedQingdao Port
 Features
The universal cutting machine uses the relative motion between the movable sprocket and the fixed sprocket to make the pulverized material pulverize through a combination of tooth impact, friction and material impact. The machine has simple structure, firm structure, stable operation and good smashing effect. The pulverized material can be directly discharged from the grinding chamber of the main machine. The particle size is obtained through the mesh screen with different apertures. In addition, the machine is made of stainless steel, the surface is smooth and easy to clean.
universal cutting machine
The nut cutting machine features:
1. The whole machine is designed according to GMP standards, all made of stainless steel.
2. The machine is simple in structure, high in energy, low in consumption and easy to clean. It is the ideal crushing equipment at present.
 Technical Data
Model LGS180B/C LGS20B/C LGS30B/C LGS40B/C LGS50B/C LGS60B/C
Capacity(KG) 5-20 50-100 50-200 100-400 200-500 200-800
Discharge fineness 20-120 20-120 20-120 20-120 20-120 20-120
Cutter diameter(mm) 150 200 300 350 500 550
monitor rate(KW) 1.5 4.0 5.5 11.0 15.0 18.5
Dust removal power(KW)   0.55 0.75 1.1 1.5 2.2
Total Weight(KG) 60 140 220 440 560 620
Dust removal weight(KG) 110 230 310 560 680 760
Dimensions(mm) 450*350*950 600*500*1170 750*600*1370 800*700*1450 850*950*1550 900*1100*1750
Dust removal size(mm) 800*500*1200 1000*500*1400 1200*700*1850 1350*900*2000 1400*900*2150 1600*1100*2300
