Biscuit Machine


Multifunctional Biscuit Automatic Processing Plant Manufacturer

  • Material: flour,egg, water, etc
  • Capacity: Minimum 100kg/h,can be customized
  • WhatsApp: +8618537181190

Description:

The hard & soft biscuit production line is developed by our company through digestion and absorption of advanced technology, which can make different shapes of biscuits.

flour,egg, water, etcMinimum 100kg/h,can be customizedQingdao Port
 Features
The hard & soft biscuit machine automatic biscuit production line is developed by our company through digestion and absorption of advanced technology. The biscuit making equipment is novel in design, compact in structure, and highly automated. It can be completed automatically from feeding calendering, molding, drying, oil spraying, cooling and packaging.

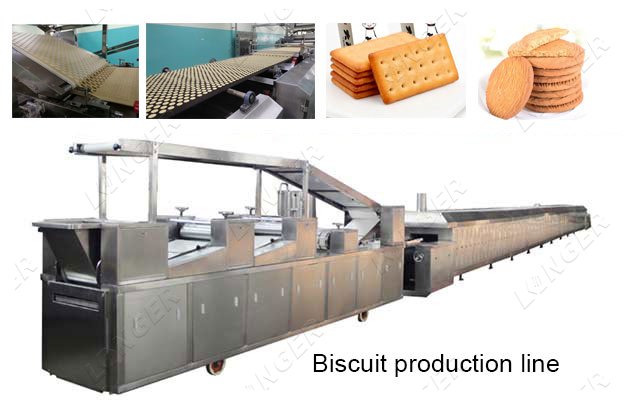

industrial biscuit production line
The automatic biscuit production line production process: Mixing flour with water, adding bulking agent, ameliorant and other auxiliary materials, and then forming, baking, cooling, stacking and packaging.
Introduction of Automatic biscuit production line:
1. When mixing low gluten wheat flour, water, sugar, milk, cream, oil, egg, the proportion of oil and sugar is Oil:Sugar=1:2; and Oil+Sugar: Flour = 1:2. The temperature of the finished batter is 26-28℃. The mixing time is 10-15 minutes.
2. The rotary moulding machine is continuous roll forming, stable operation, no impact, small vibration and noise, and no residual material. The whole machine is simple, compact and easy to operate.
3. The drive system of the tunnel baking oven transports the oven products and makes them have a suitable residence time in the oven to ensure the baking quality of the products. The transmission system includes the furnace belt, the transmission, the deviation adjustment mechanism, etc.

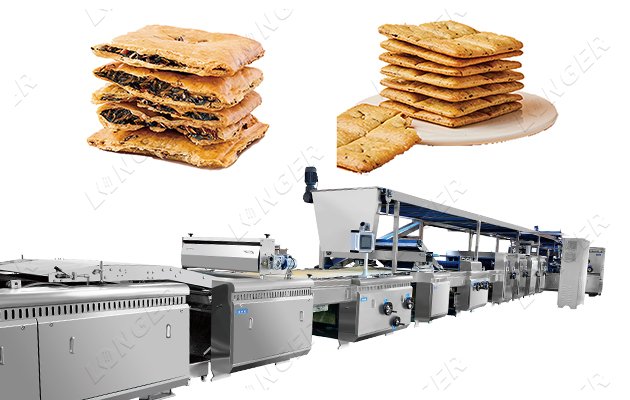

industrial biscuit processing plant

LONGER Machinery offers a complete set of automatic biscuit production line equipment, which is capable of handling all aspects of your manufacturing process. Please feel free to contact us at Email sales@longerinc.com or Phone/ WhatsApp +8618537181190

Video:
 Technical Data

No

Machine

Technical data

Qty

1

Mixer

Model:GG-100

Power:5.5kw

Voltage:380v50hz

Dimension:1250*740*1300mm

Mixing time:10-15min

1

2

Biscuit forming machine

Model:GG400

Power:2.2kw

Dimension:1800*1000*1250mm

Capacity:100-150kgh

Diamater:248

Weight:500kg

1

3

Rotary cutting



Model:GG400

Power:5.5kw

Voltage:380v50hz

Dimension:4800*1050*1700mm

Weight:2800kg

Capacity:100-150kg/h

1

4

Front transfering

Model:GG400

Dimnesion:1500*1000*850

Weight:400kg

1

5

Back transfering

Model:GG400

Power:4.5kw

Dimension:1600*1000*850

Weight:500kg

1

6

Tunnel baking oven(gas)

Model:GG400

Heating:gas

Gas consumption:12m³/h

Power:5kw

Dimension:16000*1250*1650mm

Capacity:100-150kg/h

Weight:8t

 16

7

Biscuit oil spraying machine

Model:GG400

Power:2.2kw

Dimension:1800*1000*1850mm

Weight:500kg



1

8

Cooling Machine

Model:GG400

Power:1.1kw

Dimension:8000*700*800mm

Weight:500kg

8

9

Biscuit stacking machine

Model:GG400

Power:2.2kw

Voltage:380v50hz

Dimension: 2600*1000*1200

Weight:700kg

1

10

Biscuit packing machine

Model:GG400

Power:1.1kw

Dimension:6000*700*700mm

Weight 500kg

6
